Technology

    Description

    Range of application manufacturing of stamped and formed parts for a wide range of industries
    Bed dimensions

    (l x w)

    4,000 x 1,600 mm to 7,000 x 2,500 mm, depending on press model
    Press force 6,300 kN, 8,000 kN, 10,000 kN, 11,000 kN, 12,500 kN, 16,000 kN, 20,000 kN, 25,000 kN, 32,000 kN
    Drive eccentric drive with highly dynamic torque motors
    Material feeding with coil feeding line or blankloader
    Part transfer progressive or transfer production

    Optional equipment

    • Housing
    • Sound insulation
    • Slide cushion
    • Scrap removal
    • Die change solutions
    • Vibration damped installation
    • Interface for remote services

    View

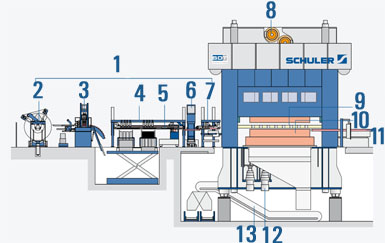

    1 Material feed I 2 Decoiler I 3 Leveling machine I 4 Destacker I 5 Roll feed unit I 6 Coil or blank lubricating unit I 7 Transfer and centering station I 8 Servo press in tie rod design I 9 Electronic, modular tri-axis transfer I 10 Progressive or transfer die I 11 Outfeed belt I 12 Hydraulic, modular drawing cushion I 13 Scrap handling system
