    Technology

    Description

    Range of application production of blanked and formed parts for the automotive industry and its suppliers
    Bed dimensions
    (l x w)    		 1,500 x 1,000 mm to 3,660 x 1,500 mm, depending on model
    Press capacity 2,000 kN, 2,500 kN, 3,150 kN, 4,000 kN, 5,000 kN, 6,300 kN, 8,000 kN, 10,000 kN
    Drive mechanical drive with modified modified knuckle-joint system
    Material feeding from coil with a roll feed line
    Parts transfer progressive die technology or modular electronic tri-axis transfer

    Optional equipment

    • Drawing cushion
    • Sound enclosure
    • Stroke adjustment
    • Scrap removal
    • Die change systems
    • Ethernet connection to plant network
    • Installation on vibration dampening elements

    View

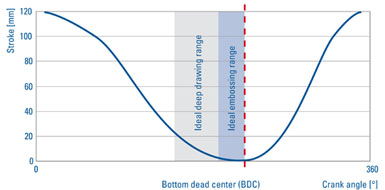

    Movement profile of knuckle-joint drive

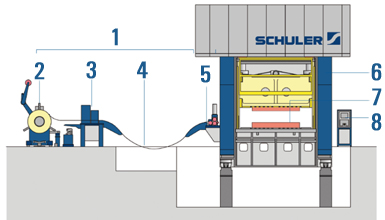

    1 Coil feed line I 2 Decoiler I 3 Levelling machine I 4 Loop pit I 5 Roll feed I 6 Two pressure points I 7 Progressive of transfer die I 8 Operating panel
