Mechanical crossbar press for outer-skin panels

Description

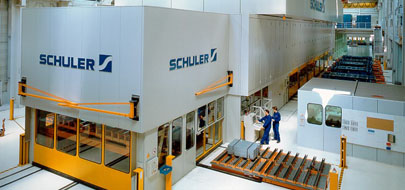

A mechanical crossbar press was delivered to an automobile industry customer as a turnkey solution for the manufacturing both steel and aluminum outer-skin parts.

To meet all the challenges of aluminum processing, the line not only has a freely-adjustable hydraulic drawing cushion with pre-acceleration, it also has a multi-point drawing unit with eight programmable cylinders (instead of the conventional four-point drawing cushion). The additional points allow better control of the material flow under the blankholder, leading to better productivity.

Schuler turnkey solutions such as this assure that all the components used-- including automation, press and dies -- are suitably adapted to the material, functioning together seamlessly.
