Unloading unit and stacking system


    Fundamentally, Schuler offers any of a wide variety of unloading concepts for motor lamination blanking lines. In recent plant applications we have delivered the following technical solutions:
    • With the unloading shovel, simultaneous unloading of the upper and lower die is possible
    • Integration of piggyback technology and/or operation without shovel system
    • Stacking onto hydraulically lowered mandrels
    • Integration of buffer delivery systems
    • Simple, cost-effective unloading system without shovel with a single stacking station

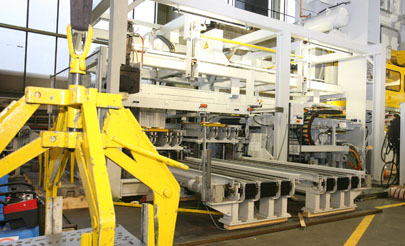

    CNC unloading shovel with linear motors and continuous pallet delivery system
